The Matrax portable flooring system is engineered to support a range of large-scale outdoor events. With more than ten years of proven performance in the most punishing conditions, the system will stand up to the rigors of multiple uses for years to come.

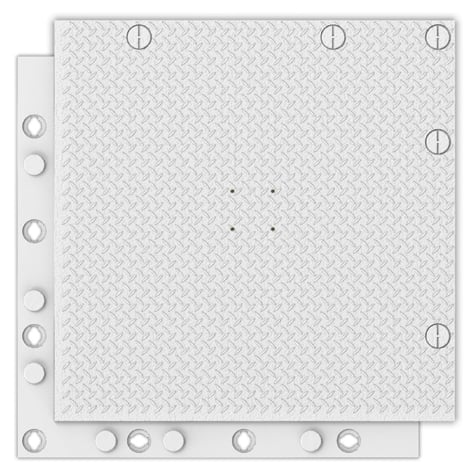

Specifications: Matrax® HD
Actual Panel Dimensions
4 ft L x 4 ft W x 1½ in H (16 ft²)
1.2 m x 1.2 m x 3.8 cm (1.49 m²)
Usable Panel Dimensions
43.625 in X 43.625 in (13.216 ft²)
1.108 m x 1.108 m (1.23 m²)
Weight
50 lbs (22.7 kg)
Weight Load
450 psi, depending on subsurface conditions

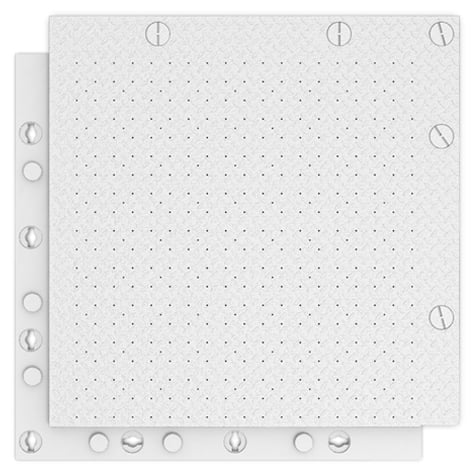

Specifications: Matrax® LD
Actual Panel Dimensions
4 ft L x 4 ft W x 1½ in H (16 ft²)
1.2 m x 1.2 m x 3.8 cm (1.49 m²)
Usable Panel Dimensions
43.625 in X 43.625 in (13.216 ft²)
1.108 m x 1.108 m (1.23 m²)
Weight
30.5 lbs (13.8 kg)
Weight Load
225 psi, depending on subsurface conditions
Innovative Engineering
Matrax panels are engineered for ease of installation and maximum performance. The overlapping upper and lower flanges are reinforced with structural ribbing adding rigidity. This structural element allows for a smooth transition between the locks and along the entire length of the adjoining panels. The overlapping lips also prevent liquids and debris that may be spilled on the surface from reaching the turf below.
Superior Strength

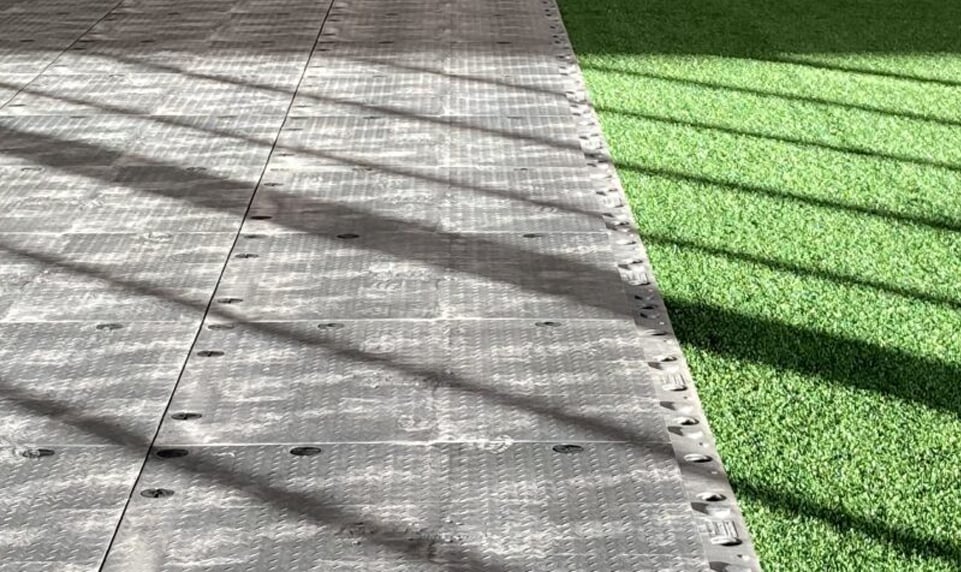

Matrax panels are strong and designed to withstand substantial weight loads while protecting the integrity of natural grass, synthetic and hybrid surfaces. Available in a heavy-duty (HD) and light-duty (LD), each panel distributes weight evenly to handle heavy equipment and large crowds. ADA-compliant ramps permit the access of vehicles and pedestrians.
Innovative Design and Connection
Matrax panels utilize a vertical locking system with 4" overlapping flanges or "lips" to interlock individual panels to one another, creating a smooth surface that is free from trip hazards.

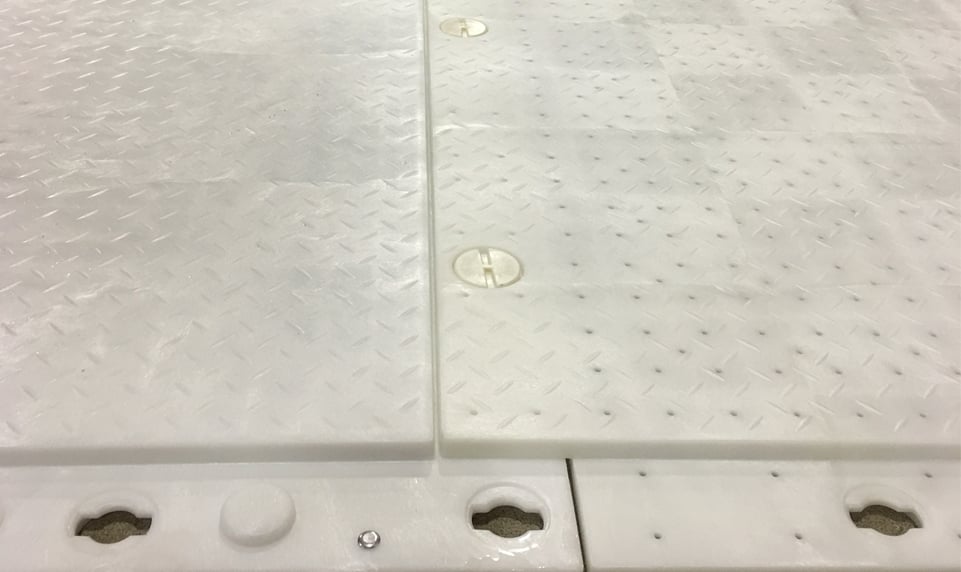

Matrax HD panels can be integrated during installation with LD panels to create driving lanes and work platforms for areas requiring protection from heavy equipment and traffic.
Efficiency and Durability

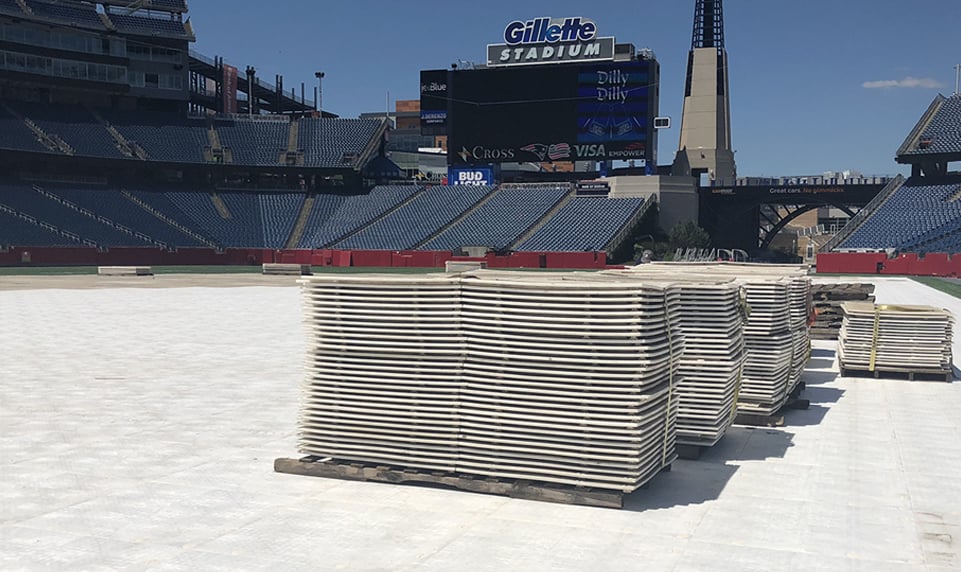

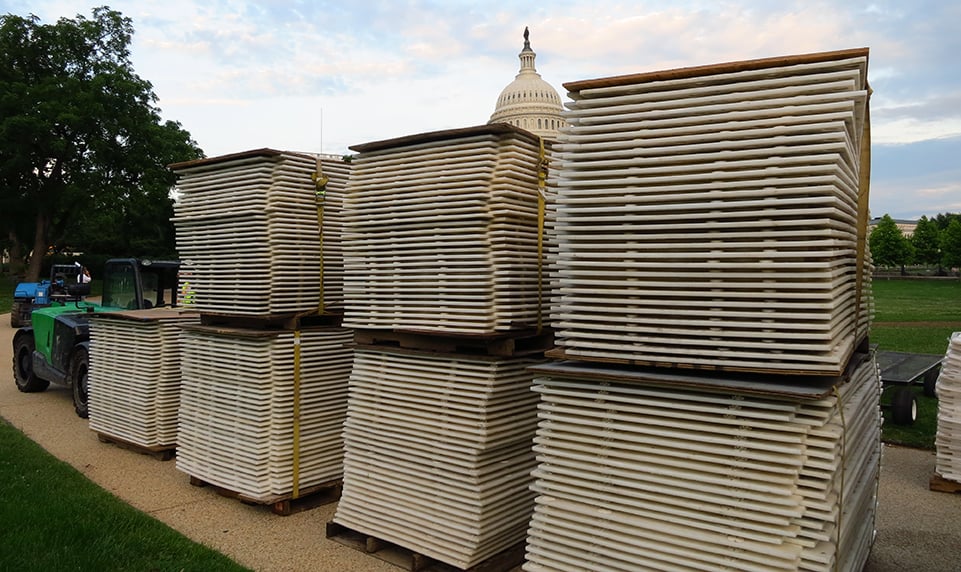

Matrax panels are shipped to the location and stored on 4' x 8' pallets in a two-panel configuration making installation, removal and storage more efficient.
The cam lock component is made from a super tough nylon material that will not rust or corrode, thus ensuring a long service life. The cam lock or "pin" provides the strength necessary to allow two panels to remain locked together during handling.
Matrax Applications

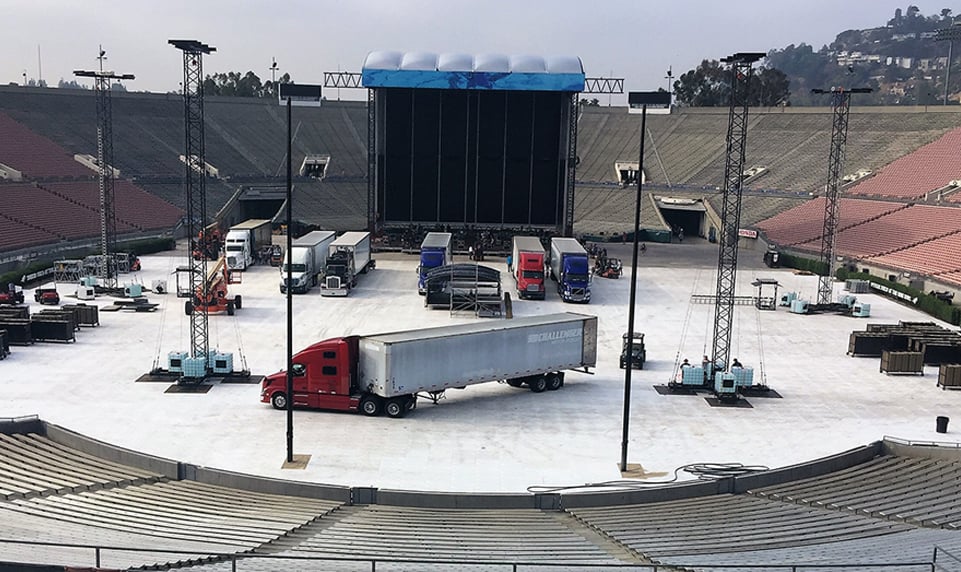

The Matrax flooring system was engineered to support a range of large stadium events and other major outdoor events requiring turf protection. The system is also designed for a wide range of other applications including:
Signature Systems engineers and manufactures innovative composite matting, turf protection and event flooring solutions for construction, industrial, stadium and special events around the world. We're committed to your success with exceptional customer service and product performance.
