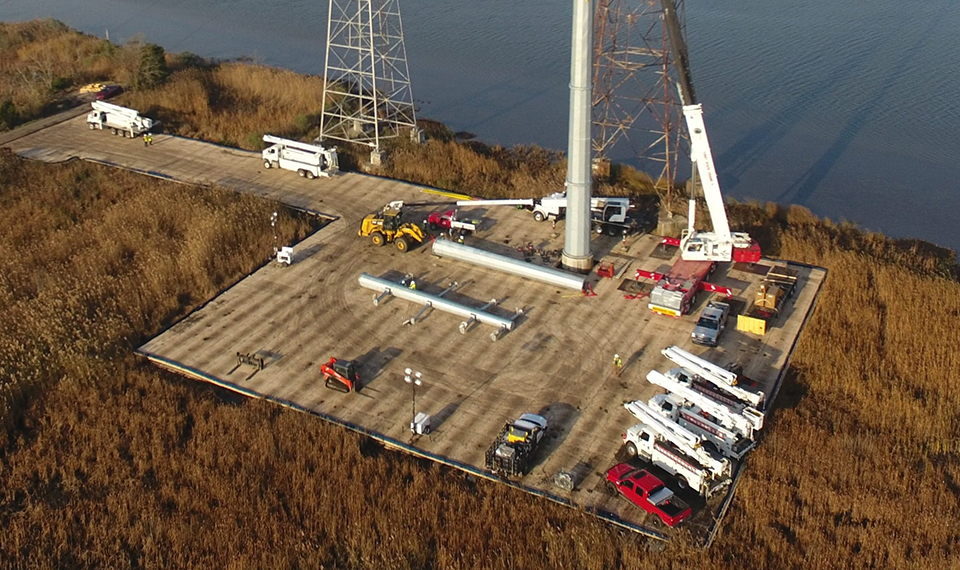

MegaDeck HD+ heavy-duty composite mats are designed specifically for high-traffic work sites, such as power transmission, oil rigs, and construction sites. MegaDeck HD+ mats create a stable work platform or temporary roadway in extremely soft and wet ground conditions.

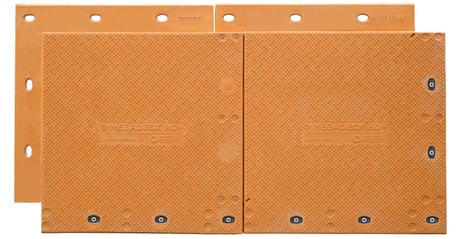

MegaDeck HD+ with MDX Connection System
Actual Size
7.5 ft L x 14 ft W x 4 in H (105 ft²)
2.3 m L x 4.3 m W x 10.16 cm H (9.75 m²)
Weight
1,025 lbs (464.9 kg)
Color
Orange
Weight Load
600 psi, depending on subsurface conditions
Shipping Info
U.S. standard flatbed truck: Up to 42 mats
40 ft ISO HC shipping container: 42 mats
20 ft ISO shipping container: 20 mats - 1 stack, 20 mats high
U.K. lorry/EU trucks: Up to 50 mats
MegaDeck HD+ with S2 Lock™ Connection System
Acutal Size
7.5 ft L x 14 ft W x 4 in H (105 ft²)
2.3 m L x 4.3 m W x 10.16 cm H (9.75 m²)
Weight
1,046 lbs (474.5 kg)
Color
Beige
Weight Load
600 psi, depending on subsurface conditions
Shipping Info
U.S. standard flatbed truck: Up to 42 mats
40 ft ISO HC shipping container: 42 mats
20 ft ISO shipping container: 20 mats - 1 stack, 20 mats high
U.K. lorry/EU trucks: Up to 50 mats
Stronger, Safer Protection
MegaDeck HD+ composite mats create strong, stable, nonshifting work platforms or temporary access roads that reduce the risk of accidents and protect your personnel and your equipment.
Heavy-duty construction mats with overlapping flanges, interlocking design, and secure connection system creates one continuous surface that prevents drifting, separation and hopping under heavy rolling loads or over soft ground. Signature's construction mats are semi-buoyant, providing reliable support for heavy equipment and cranes in swamps and muddy conditions.
Composite Matting with Minimal Environmental Impact
MegaDeck HD+ composite mats are made from non-toxic HDPE, which protects vegetation and environmentally sensitive areas and will control soil compaction, preventing time consuming and expensive remediation efforts. Signature’s construction mats eliminate cross-contamination between worksites and the possible transmission of parasites, chemicals, oils, mold and insects. Mats will not rot or degrade, which allows for long-term installations with minimal environmental impact. At the end of each use, mats can be easily cleaned.
Sustainable Composite Matting System
Signature’s composite mats are a sustainable temporary roadway solution that helps limit deforestation and conserves one of the Earth’s most precious resources. With proper care and maintenance, MegaDeck HD+ construction mats can be used on countless projects for 10+ years and at the end of their life can be downcycled to create new products.
Innovative Design and Secure Connection
MegaDeck HD+ composite mat's heavy-duty overlapping flanges stay securely in place with MDX pins or S2 Lock™ technology. Additionally, MegaDeck HD+ mats combined with the MDX pinning system are intentionally designed to be reversible, allowing mats to pin together as high as the job requires, even in challenging environments.
Advanced MDX Pin Design
The MDX Pinning System’s high-strength, aluminum alloy pin core and strong engineered plastic are designed for the most extreme loads and impacts. The pin hole is molded directly into MegaDeck HD+ composite mats and a large pin foot snugly locks the mats together with indicators to show a locked or an unlocked position.
Efficiency and Durability
MegaDeck HD+ construction mats are properly sized to easily ship 40 mats in standard ISO HC containers and flatbed trailers, helping you save on shipping costs. Composite mats offer a work life of 10+ years in most environments and minimize equipment wear and tear to maximize your Return on Investment (ROI).
MegaDeck HD+ Applications
Get your heaviest projects done safely, quickly, and efficiently. MegaDeck HD+ composite mats are designed for a wide range of heavy-duty construction applications, including:
See MegaDeck HD+ with MDX Connection System in 3D
